MTL 8502-BI-DP Bus Interface Module

This is the Profibus DP bus interface module from Eaton's MTL brand, designed specifically for the MTL 8000 series I/O systems, serving as a communication bridge between the on-site I/O module and the upper control system (PLC/DCS).

core parameters

Project specifications

Model 8502-BI-DP

Type Bus Interface Module (BIM)

MTL 8000 I/O System Series

Bus protocol Profibus DP slave, up to 6 Mbaud

HART support ✅  Support, capable of reading process variables and status information

Maximum mounting of 24 I/O modules

Supply voltage 24 V DC

Current consumption 100 mA

Working temperature -20 ° C~+60 ° C

Humidity range 5%~95% RH (no condensation)

Dimensions 120mm × 80mm × 45mm

Weight 0.35 kg (net weight)

Explosion proof certification ATEX/IECEx, applicable to Zone 1 and Zone 2

Installation method: DIN rail/carrier installation

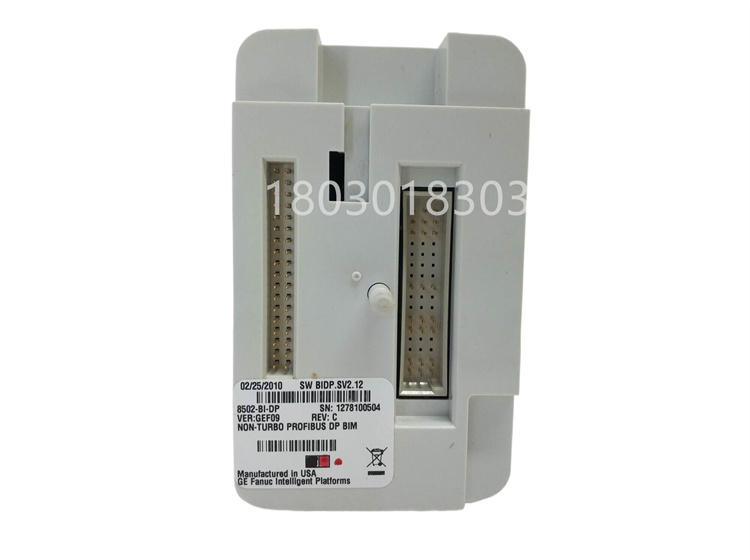

MTL 8502-BI-DP (1) _ Copy. jpg

Key functions

Function Description

Profibus DP communication is used as a slave to access master systems such as Siemens S7 and ABB AC800M

HART transparent transmission can remotely read process variables and diagnostic information of HART devices through the Profibus master station

Expand the diagnostic real-time monitoring module and the status of each channel to quickly locate faults

Remote configuration supports parameter modification through Profibus master station or local port, non-volatile storage

HART maintenance can be performed online through a communication adapter for HART devices

Typical Applications

Industry scenario

Petrochemical pressure/temperature/flow monitoring, safety interlock control

Data collection for power generation units and substations

Control of metallurgical rolling mills, blast furnaces and other equipment

Remote monitoring and data transmission core node for process control

Comparison of related modules

Module differences

8502-BI-DP Profibus DP slave station, intrinsic safety type, with a maximum of 24 I/O connections

8715-CA-BI MTL another bus interface, compatible with TRICONEX

CI856K01 ABB S100 I/O communication module (different brand systems)

Confirm compatibility with the main station: Your PLC/DCS must support Profibus DP (such as Siemens S7-300/400, ABB AC800M, etc.) and not Profinet or EtherNet/IP.

Intrinsic safety vs non intrinsic safety: 8502-BI-DP belongs to the Intrinsic Safety category and can be used in explosion-proof areas; If it is a regular area, confirm whether an intrinsic safety version is required.

Number of I/O modules: A single 8502-BI-DP can carry up to 24 I/O modules, and expansion is required if exceeded.

HART requirement: If there is a HART instrument on site and diagnostic data needs to be read through DCS, this module is the optimal solution; If HART is not required, simpler DP interface modules can be considered to reduce costs.
