Toshiba UTLH21 工业控制器

这是东芝（Toshiba）推出的 Unifi NV 系列高性能工业控制器，代表东芝在工控自动化领域对原有 V 系列的重大升级，定位中大型过程控制与运动控制场景。

核心参数

关键技术亮点

典型系统拓扑

1[监督计算机 / HMI / 服务器]2         │ 千兆以太网3   ┌─────┴─────┐4   │  UTLH21    │ ← 电气环（蓝色）：本地 I/O5   │  控制器    │6   └─────┬─────┘7         │ TC-net I/O 光环（红色）：现场分布式 I/O8   ┌─────┴─────┐9   │ 现场 I/O  │ ← 装在现场机柜（IP54），靠近机器10   │   机柜    │11   └───────────┘12

• 电气环（蓝色）：服务控制器本地 I/O（SIO 模块）
• 光环（红色）：服务现场分布式 I/O，通过光电转换器/集线器连接
• 大型驱动器（如 TMDrive-10E2 系列）以星形连接到集线器

应用领域

1. 确认系统架构：UTLH21 属于 Unifi NV 系列，不要与东芝 MELSEC FX3U 系列（小型 PLC）混淆——网上有错误信息将其描述为 FX3U 模拟输入模块，那是不同产品线。
2. 通信匹配：TC-net I/O 是东芝私有协议，如果你的上位系统是西门子/ABB，需确认是否有协议网关。
3. 现场 I/O 规划：如果现场点位多，优先利用光环拓扑，可节省 60% 以上布线成本。
4. 替换 V 系列：UTLH21 是 V 系列的直接升级替代，编程环境兼容，迁移成本较低。

Toshiba UTLH21 Industrial Controller

This is the Unifi NV series high-performance industrial controller launched by Toshiba, representing a significant upgrade of Toshiba's original V series in the field of industrial control automation, positioned for medium and large-scale process control and motion control scenarios.

core parameters

Project specifications

Model UTLH21

Belonging to the Unifi NV series

Communication bus TC net I/O (100Mbps fault-tolerant ring network, industry first)

Monitoring network Gigabit Ethernet

Control language IEC 61131-3 standard, directly executed by ASIC hardware

CPU redundancy ✅  Support, up to 3 CPUs can be configured

Memory Error Correction ECC Memory Error Correction Technology

I/O expansion modular design, supporting multiple I/O modules such as digital/analog/communication

On site I/O protection IP54 (dustproof, splash proof, anti vibration)

Electrical cabinet protection IP20

Wide temperature design for working temperature, suitable for industrial environment

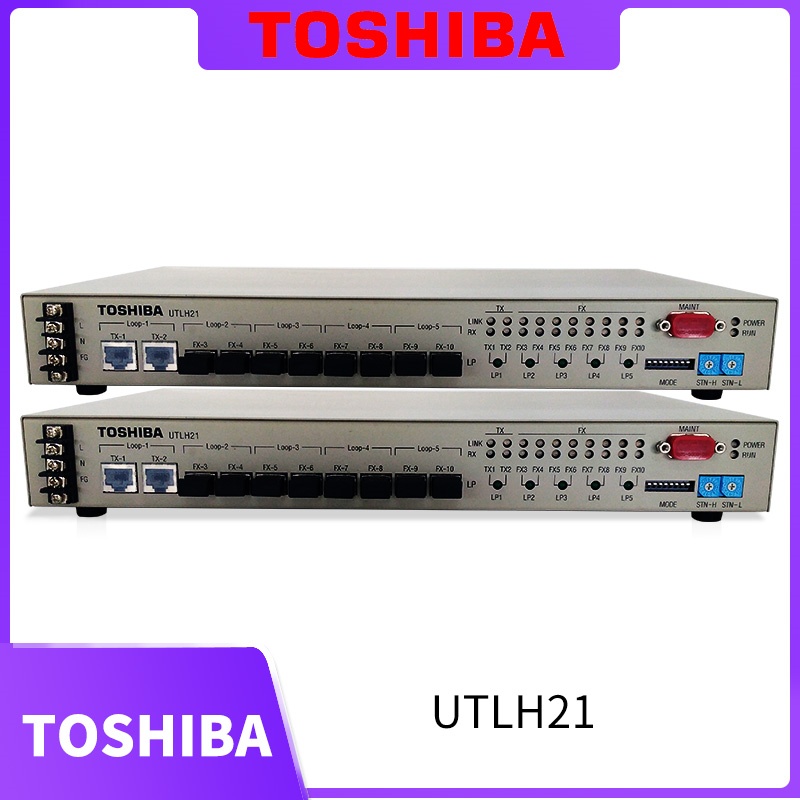

Toshiba UTLH21- (1). jpg

Key technological highlights

Characteristic Description

TC net I/O ring 100Mbps fault-tolerant ring network, remote on-site I/O communicates with the controller through an optical loop, greatly reducing the wiring from the electrical room to the site

ASIC hardware executes IEC standard control language directly in ASIC, without software interpretation, with processing speed far exceeding traditional PLC

On site installation of I/O modules can be directly installed in the on-site cabinet next to the machine (typical size 1200 × 2100 × 600mm), through fiber optic loop communication, reducing hundreds of long wires

ｒｅｐｌａｃｅ long-distance analog/digital signal lines with gigabit networks between the electrical room and machines in the gigabit monitoring network

Highly reliable architecture with redundant CPU, ECC memory, and fault-tolerant communication ring, suitable for continuous production scenarios

Typical system topology

1 [Supervising Computer/HMI/Server] 2 │ Gigabit Ethernet 3 ┌--------------4 │ UTLH21 │← Electrical Ring (blue): Local I/O5 │ Controller │ 6 └-------------------------------------------------------------------------------------------- ------- ┘ 12

Electrical ring (blue): Service controller local I/O (SIO module)

Halo (red): Distributed I/O service on-site, connected through photoelectric converters/hubs

Large drives (such as TMDrive-10E2 series) are connected to hubs in a star configuration

application field

Typical Industry Scenarios

Crane port/factory lifting control

Metal processing rolling mill, stamping line

Mining belt conveyor and crushing system

Oil and gas process monitoring, safety interlocking

Power/utility generator sets, substations

Continuous process control of papermaking/cement

Confirm system architecture: UTLH21 belongs to the Unifi NV series and should not be confused with the Toshiba MELSEC FX3U series (small PLC) - there is an error message online describing it as an FX3U analog input module, which is a different product line.

Communication matching: TC net I/O is a proprietary protocol of Toshiba. If your upper system is Siemens/ABB, you need to confirm whether there is a protocol gateway.

On site I/O planning: If there are multiple points on site, prioritizing the use of halo topology can save over 60% of wiring costs.

Replacing the V series: UTLH21 is a direct upgrade replacement for the V series, with compatible programming environments and lower migration costs.
