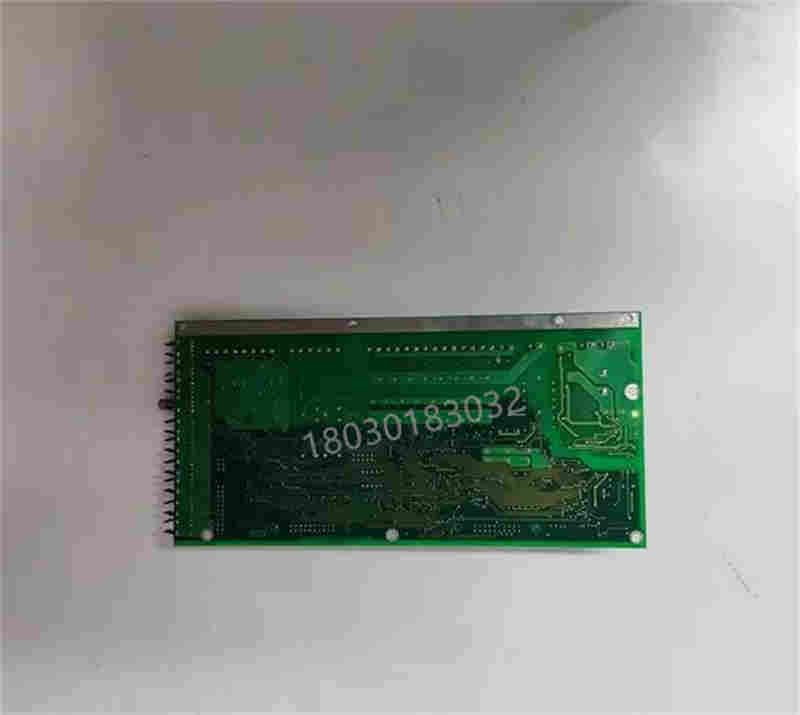

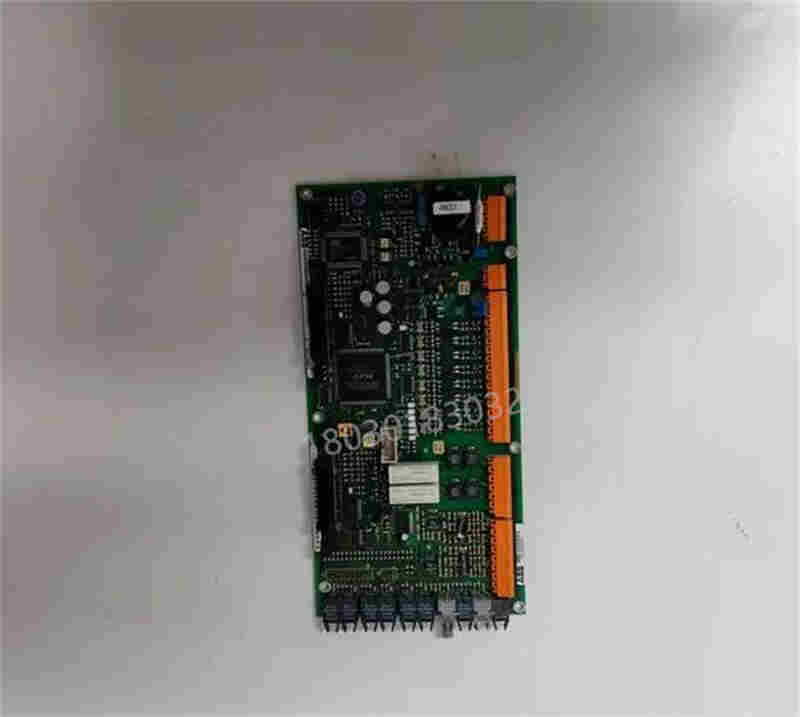

ABB UAC389AE02 HIEE300888R0002 是一款高性能的数字电源控制板，广泛应用于工业自动化、过程控制和电力管理系统中。

技术规格

输入电压：24V DC ±20%。

输入电流：最大 5 mA。

输出电压：0-10V DC。

输出电流：最大 500 mA。

工作温度范围：-40°C 至 +70°C。

尺寸：100mm x 75mm x 25mm。

重量：0.3kg。

防护等级：IP65。

通信协议：支持 Modbus、Profibus、Ethernet/IP、Modbus TCP/IP 等。

处理器：32位 RISC 处理器。

存储容量：RAM 256 KB，Flash 512 KB。

I/O 接口：8 个模拟输入，8 个模拟输出，16 个数字输入，16 个数字输出。

功耗：20W。

功能特点

高可用性：通过模块对的冗余性和故障的高覆盖率，提供非常高的子系统可用性时间。

故障保护：具有数字输出故障保护回退数据、掩码选项和现场总线故障保护延迟时间等可配置选项，确保系统的稳定运行。

模块化设计：易于拆卸和更换，无需移除现场设备端接电缆、电源或通信电缆，降低了维护成本。

通信能力：支持冗余 2Mbps 现场总线接口，确保数据通信的可靠性和稳定性。

多种 I/O 选项：通过简单地将模块连接到 PLC 的背面，可以添加各种内置 I/O 选项，如数字和模拟输入/输出、高速 I/O 等。

高精度控制：采用高精度传感器，测量精度可达 ±0.1%。

多种控制模式：支持恒流控制、恒压控制等多种励磁控制模式，用户可根据实际需求选择和配置。

应用领域

该模块适用于以下领域：

工业自动化：机器人、自动化生产线、检测设备等。

过程控制：化工、冶金、造纸等行业的生产过程控制。

电力管理：电力系统监控、保护和控制。

其他领域：交通、能源、制造业等。

总结

ABB UAC389AE02 HIEE300888R0002 是一款功能强大、可靠性高的数字电源控制板，适用于多种工业自动化和控制系统。它通过模块化设计和多种通信协议支持，提供了灵活的配置选项和高效的控制能力。

ABB UAC389AE02 HIEE30088R0002 is a high-performance digital power control board widely used in industrial automation, process control, and power management systems. technical specifications Input voltage: 24V DC ± 20%. Input current: maximum 5 mA. Output voltage: 0-10V DC. Output current: maximum 500 mA. Working temperature range: -40 ° C to+70 ° C. Size: 100mm x 75mm x 25mm. Weight: 0.3kg. Protection level: IP65. Communication protocol: Supports Modbus, Profibus, Ethernet/IP, Modbus TCP/IP, etc. Processor: 32-bit RISC processor. Storage capacity: 256 KB RAM, 512 KB Flash. I/O interface: 8 analog inputs, 8 analog outputs, 16 digital inputs, 16 digital outputs. Power consumption: 20W. Functional Features High availability: Provides very high subsystem availability time through module redundancy and high coverage of failures. Fault protection: It has configurable options such as digital output fault protection fallback data, mask options, and fieldbus fault protection delay time to ensure the stable operation of the system. Modular design: easy to disassemble and ｒｅｐｌａｃｅ, without the need to remove on-site equipment termination cables, power or communication cables, reducing maintenance costs. Communication capability: Supports redundant 2Mbps fieldbus interfaces to ensure the reliability and stability of data communication. Multiple I/O options: By simply connecting the module to the back of the PLC, various built-in I/O options can be added, such as digital and analog input/output, high-speed I/O, etc. High precision control: using high-precision sensors, the measurement accuracy can reach ± 0.1%. Multiple control modes: Supports various excitation control modes such as constant current control and constant voltage control, and users can choose and configure them according to their actual needs. application area This module is applicable to the following fields: Industrial automation: robots, automated production lines, testing equipment, etc. Process control: Production process control in industries such as chemical, metallurgical, and papermaking. Power management: monitoring, protection, and control of power systems. Other fields: transportation, energy, manufacturing, etc. summarize ABB UAC389AE02 HIEE30088R0002 is a powerful and highly reliable digital power control board suitable for various industrial automation and control systems. It provides flexible configuration options and efficient control capabilities through modular design and support for multiple communication protocols.
