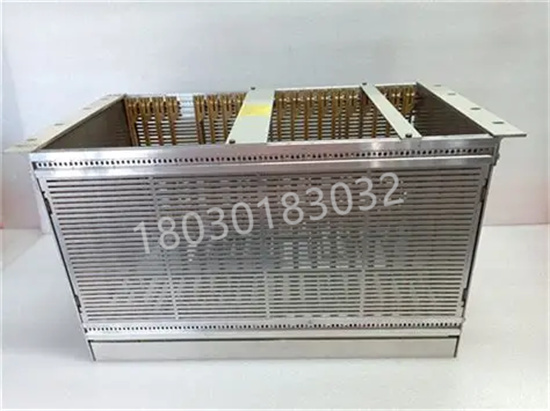

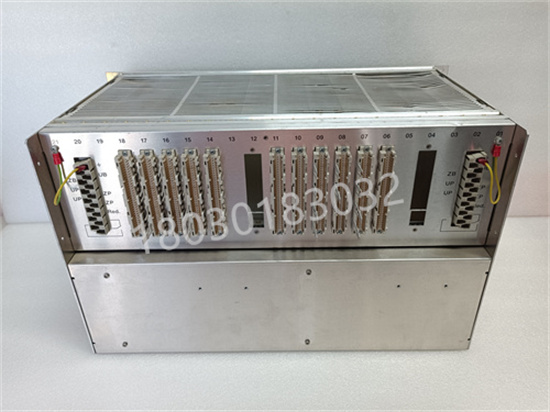

ABB REG216 数字发电机保护框架

产品概述

ABB REG216 是一款高性能的数字发电机保护系统，专为工业自动化和电力系统设计。它采用模块化设计，提供灵活的配置选项，能够满足不同规模和类型的发电机组的保护需求。

技术规格

• 产品型号：REG216
• 制造商：ABB
• 产品类型：数字式发电机保护系统设备机架/模块化安装框架
• 适用模块：ABB REG216 系列保护模块
• 标准尺寸：19 英寸标准安装（高度根据配置而定，例如 3U, 6U, 9U 等）
• 材质：高强度钢或铝合金
• 安装方式：机架式安装，螺钉固定
• 散热方式：自然通风或强制风冷（取决于机架设计）
• 工作温度范围：-20°C 至 +60°C
• 防护等级：IP20

主要特点和优势

• 模块化设计：支持灵活配置，可根据实际需求选择不同类型的保护模块。
• 全面保护功能：提供过流保护、欠压保护、过压保护、逆功率保护等多种保护功能。
• 全数字信号处理：通过 PC 菜单辅助设置，实现参数设置和记录。
• 硬件持续自检：软件执行周期性测试，确保装置的可靠性。
• 实时数据采集：能够实时采集各种传感器的数据，包括温度、压力、流量、电流等参数。
• 通信接口：支持与电站控制层进行通信和协调，兼容不同的过程控制系统。
• 高可用性：支持冗余配置，确保系统的高可用性和可靠性。

应用领域

• 发电厂：用于保护发电机和变压器，确保电力系统的稳定运行。
• 石油化工：用于监测和保护石油化工过程中的关键设备。
• 冶金与材料加工：用于监测和控制生产过程中的各种设备。
• 电力与能源：用于变电站的电网监控，满足电力系统对实时性和稳定性的严格要求。

ABB REG216 digital generator protection framework

product overview

ABB REG216 is a high-performance digital generator protection system designed specifically for industrial automation and power systems. It adopts a modular design and provides flexible configuration options to meet the protection needs of different sizes and types of generator sets.

technical specifications

Product Model: REG216

Manufacturer: ABB

Product Type: Digital Generator Protection System Equipment Rack/Modular Installation Framework

Applicable module: ABB REG216 series protection module

Standard size: 19 inches standard installation (height depends on configuration, such as 3U, 6U, 9U, etc.)

Material: High strength steel or aluminum alloy

Installation method: rack mounted, screw fixed

Cooling method: natural ventilation or forced air cooling (depending on rack design)

Working temperature range: -20 ° C to+60 ° C

Protection level: IP20

Main features and advantages

Modular design: supports flexible configuration, and different types of protection modules can be selected according to actual needs.

Comprehensive protection function: Provides multiple protection functions such as overcurrent protection, undervoltage protection, overvoltage protection, reverse power protection, etc.

All digital signal processing: parameter setting and recording are achieved through PC menu assistance.

Continuous hardware self-test: Software performs periodic testing to ensure the reliability of the device.

Real time data collection: capable of collecting data from various sensors in real-time, including parameters such as temperature, pressure, flow rate, and current.

Communication interface: Supports communication and coordination with the power plant control layer, compatible with different process control systems.

High availability: Supports redundant configuration to ensure high availability and reliability of the system.

application area

Power plant: used to protect generators and transformers, ensuring the stable operation of the power system.

Petrochemical industry: used for monitoring and protecting key equipment in petrochemical processes.

Metallurgy and Material Processing: Used for monitoring and controlling various equipment in the production process.

Electricity and Energy: Used for power grid monitoring in substations, meeting the strict requirements of real-time and stability in the power system.
